WATTSTUNDE® SOLA Frame Shadow 350 W Solar Module Complete Set in Black with Charge Controller

  • Power: 2 x 175 watts
  • N-type back-contact cells with anti-shading architecture
  • Up to 80% more power in partial shade
  • Weight: 8.7 kg
  • with Victron SmartSolar 100/30 MPPT Bluetooth charge controller
  • 1.5 m battery connection cable with 30 A fuse

Direkt zu den Produktinformationen ↓
Modulserie
Farbe der Halterung
Leistung:
Sale price1.178,81 €
Neues Produkt

Tax included. Shipping calculated at checkout

SKU: WS22-SFS-350200

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

WATTSTUNDE® SOLA Frame Shadow 350 W Solar Module Complete Set (Black) with Charge Controller

The WATTSTUNDE® SOLA Frame Shadow 350 W Complete Set in Black is a powerful solar solution for vehicle roofs, if you want more energy available for your mobile lifestyle while preferring a discreet, uniform look. You get two Shadow modules, the matching Victron MPPT charge controller, as well as cabling, fuses, and roof accessories in black in one package. This provides a clean installation from the roof to the battery, without mixing parts or long searches.

The 350 W is made up of 2 × SOLA Frame Shadow 175. This provides noticeably more solar yield for appliances such as refrigerators, lights, chargers, or other regular loads. Since partial shading and changing light conditions on the roof are normal, the Shadow series is designed for exactly these practical conditions.

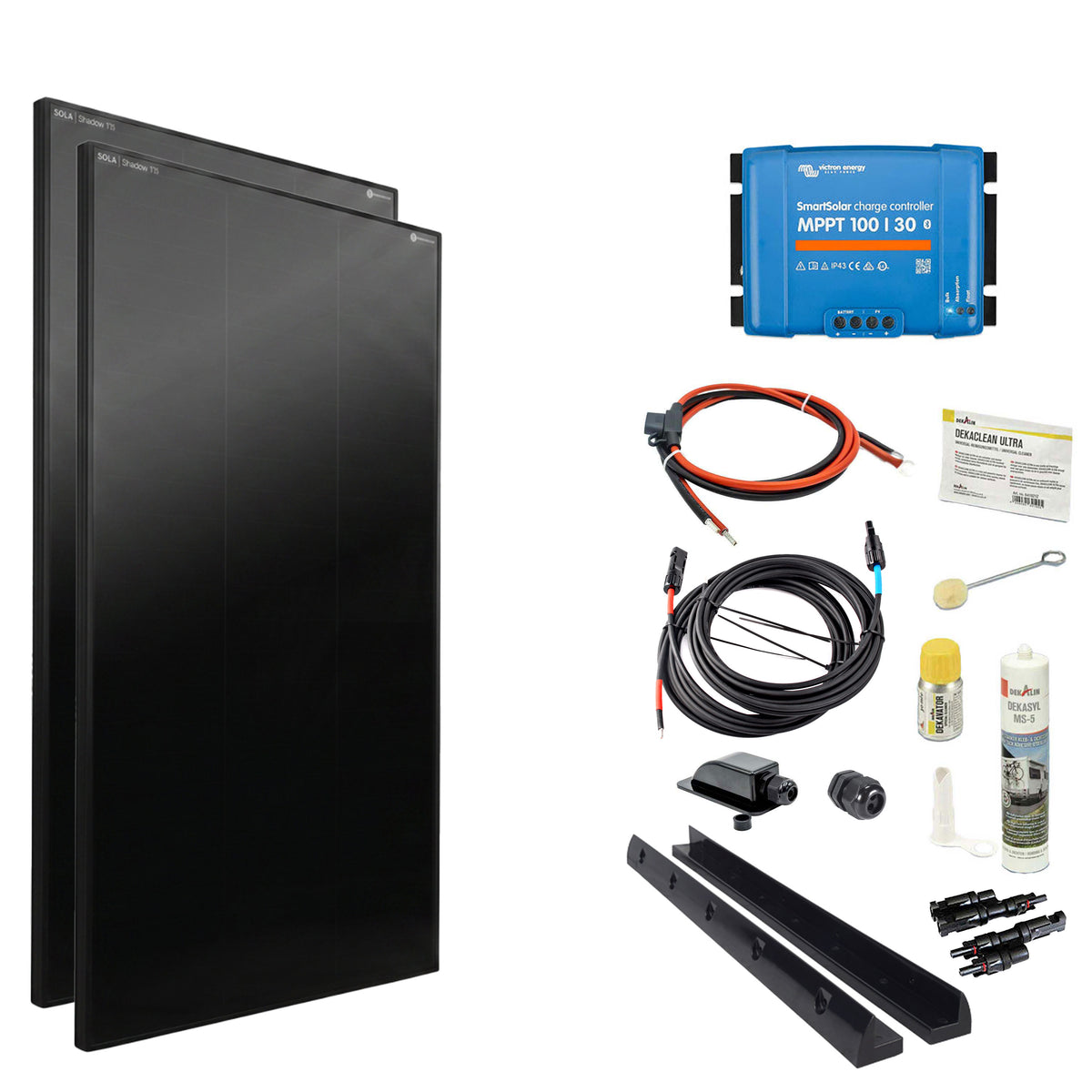

Set Contents

  • 1 × Victron SmartSolar MPPT 100/30 (integrated Bluetooth)
  • 2 × WATTSTUNDE® SOLA Frame Shadow 175 (350 W total)
  • 1 × WATTSTUNDE® MVK 6.7 Connection Cable Solar Module → Charge Controller
  • 1 × WATTSTUNDE® Fuse Cable (with 30 A fuse)
  • 2 × WATTSTUNDE® MOUNT Solar Module Mount 67 (black)
  • 1 × Dekalin Dekasyl MS-5 (black, 290 ml)
  • 1 × Dekalin Adhesive Set (black)
  • 1 × WATTSTUNDE® Roof Entry DX1/W ASA (black)
  • 1 × WATTSTUNDE® Cable Gland Twin Solar Cable M20×1.5 (black)
  • 1 × WATTSTUNDE® MC4.2 Connector Set (Y-connector for parallel connection)

Victron SmartSolar MPPT 100/30: ultra-fast tracking, Bluetooth integrated directly

The Victron SmartSolar MPPT 100/30 operates with ultra-fast MPPT tracking and efficiently charges the solar yield into the battery – especially with changing irradiance. Via Bluetooth, you can connect the controller directly to the VictronConnect App, retrieve live data, and adjust settings without an additional dongle. The BatteryLife Algorithm supports intelligent battery management in everyday use.

Cabling in 6 mm² and 30 A fuse: suitable for higher currents

From the roof to the controller, you use the WATTSTUNDE® MVK 6.7 Connection Cable (2 × 7 m, 6 mm²) – module-side with MC4-compatible connectors, controller-side with crimp terminals. The WATTSTUNDE® Fuse Cable is included for the connection to the battery (1.5 m, 2 × 6 mm², red/black) with a replaceable 30 A blade fuse as well as M8 ring terminals/crimp terminals.

Black roof components: stable mounting and clean installation

For a visually harmonious installation, the visible components are designed in black. For mounting, 2 × WATTSTUNDE® MOUNT Solar Module Mount 67 (black) are included – matching the module size and ensuring a stable fit on the roof. For cable entry, the WATTSTUNDE® Roof Entry DX1/W ASA (black) and the WATTSTUNDE® Cable Gland for Twin Solar Cable M20×1.5 (black) are provided, so that the cable routing remains tight and neat.

Bonding & Sealing: Dekasyl MS-5 plus Dekalin Adhesive Set

For bonding and sealing, Dekalin Dekasyl MS-5 (black, 290 ml) is included. Additionally, a Dekalin Adhesive Set (black) is also included in the set, so that preparation and processing can be carried out cleanly.

WATTSTUNDE® MC4.2 Connector Set: simply connect two modules in parallel

So that both solar modules work together cleanly, a WATTSTUNDE® MC4.2 Connector Set is included (Y-connector for parallel connection). This makes installation easier and ensures an organized wiring setup.

Your benefits at a glance

  • 350 W total power from 2 modules – more solar yield for mobile everyday use
  • Heavy-duty cabling: 6 mm² connection cable (2 × 7 m) for low losses
  • Cleanly fused: battery cable with 30 A fuse (replaceable)
  • MC4.2 Y-connector for easy parallel connection of the two modules
  • Black mounting and roof components for a discreet, uniform roof appearance

If you are looking for a powerful solar setup for on the go that is technically compatible and remains visually inconspicuous on the roof, the WATTSTUNDE® SOLA Frame Shadow 350 W Complete Set in Black is a very suitable choice.





Technical Data SOLA Frame Shadow 175
Rated power 175 W
Max. daily yield (summer) 700 Wh/d
Voltage (Vmp) 31.20 V
Current (Imp) 5.61 A
Open-circuit voltage (Voc) 36.40 V
Short-circuit current (Isc) 5.90 A
Cell efficiency ≤ 26 %
Cell material N-Type Back Contact
Bypass diodes 2
Weight 8.7 kg
Dimensions 1170 x 720 x 30 mm



Technical Data SmartSolar MPPT 100 / 30
Battery voltage 12 V / 24 V
Rated charging current 30 A
Rated PV power 12 V 440 W
Rated PV power 24 V 880 W
Max. PV open-circuit voltage 100 V
Max. PV short-circuit current 35 A
Efficiency 98 %
Constant charging voltage 14.4 V / 28.8 V
Float charging voltage 13.8 V / 27.6 V
Operating temperature - 30 °C - + 60 °C
Weight 1.3 kg
Dimensions 130 x 186 x 70 mm
