WATTSTUNDE® SOLA Frame Shadow 440 W Solar Module Complete Set in White with Charge Controller

  • Power: 2 x 220 watts
  • N-type back-contact cells with anti-shading architecture
  • Up to 80% more power in partial shade
  • Weight: 11.4 kg
  • with Victron SmartSolar 100/30 MPPT Bluetooth charge controller
  • 1.5 m battery connection cable with 30 A fuse

Direkt zu den Produktinformationen ↓
Modulserie
Farbe der Halterung
Leistung:
Sale price1.332,79 €
Neues Produkt

Tax included. Shipping calculated at checkout

SKU: WS22-SFS-440100

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

WATTSTUNDE® SOLA Frame Shadow 440 W Solar Module Complete Set (White) with Charge Controller

The 440 W complete set in white is a particularly powerful, ready-to-install solar solution for the vehicle roof – ideal if you want to provide significantly more energy on the go while preferring a clean, bright roof setup. You get two powerful Shadow modules, the matching Victron MPPT charge controller, as well as cabling, fuses, and roof accessories in white. This ensures that the installation from the roof to the onboard battery is properly planned, without a mix of parts.

The 440 W result from 2 × SOLA Frame Shadow 220. This builds a strong basis for greater autonomy – for example, for a refrigerator, chargers, lighting, or continuously running devices. Since partial shading, heat, and changing irradiance on the roof can never be completely ruled out, the Shadow series is designed for exactly these practical conditions.

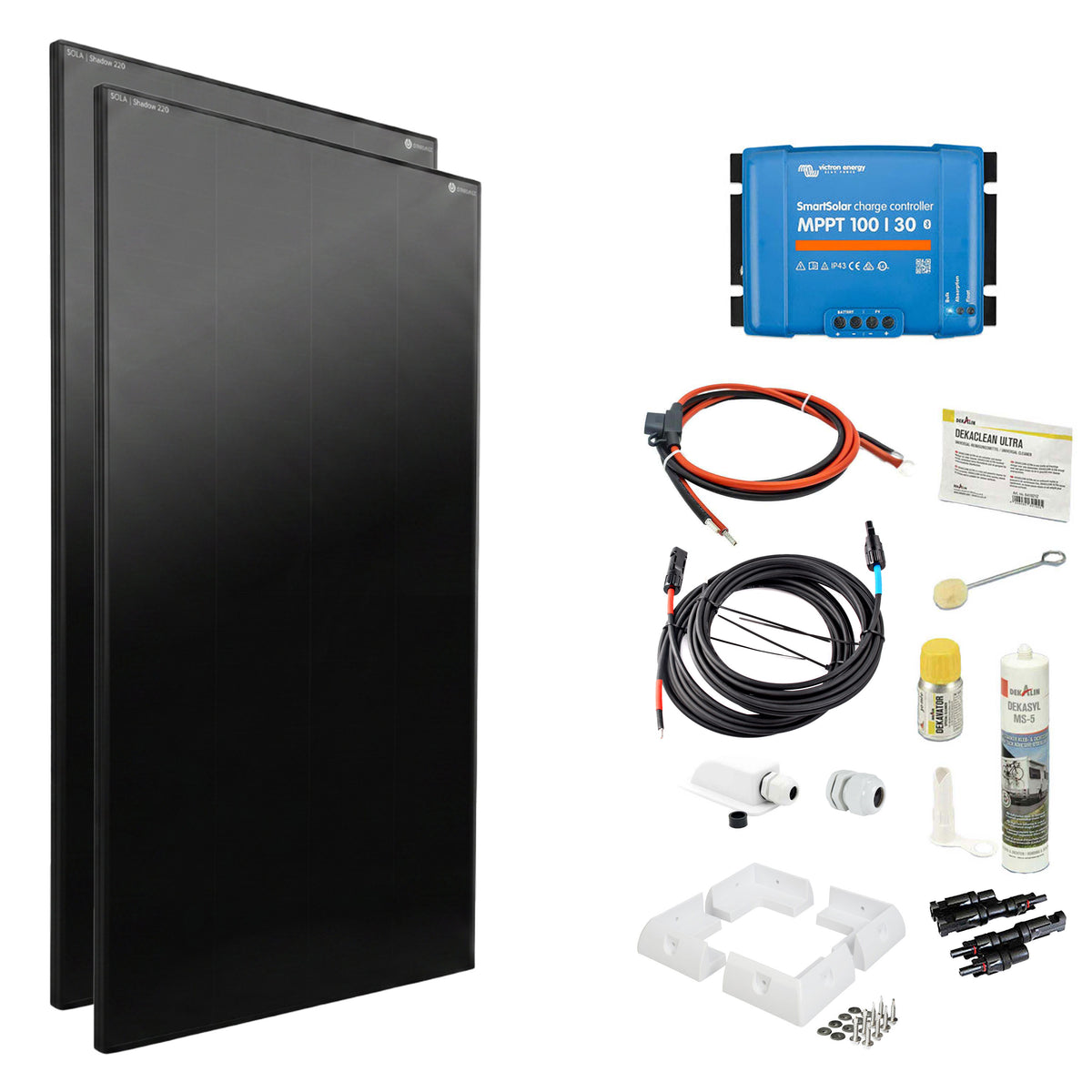

Set Contents

  • 1 × Victron SmartSolar MPPT (integrated Bluetooth)
  • 2 × WATTSTUNDE® SOLA Frame Shadow 220 (440 W total)
  • 2 × WATTSTUNDE® MOUNT Corner Bracket (white)
  • 1 × WATTSTUNDE® MVK Connection Cable solar module → charge controller (2 × 7 m)
  • 1 × WATTSTUNDE® Fuse Cable (with fuse), 1.5 m, red/black
  • 1 × WATTSTUNDE® MC4.2 Connector Set (Y-connector for parallel connection)
  • 1 × Dekalin Dekasyl MS-5 (white, 290 ml)
  • 1 × Dekalin Adhesive Set (white)
  • 1 × WATTSTUNDE® Roof Entry DX1/W ASA (white)
  • 1 × WATTSTUNDE® Cable Gland Twin solar cable M20×1.5 (white)

Victron SmartSolar MPPT: charge efficiently and monitor via app

The included Victron SmartSolar MPPT efficiently transfers the solar yield to the battery via MPPT tracking. Thanks to Bluetooth, you can connect the controller directly to the VictronConnect App, retrieve live data, and adjust settings – without an additional dongle.

White MOUNT Corner Brackets: compact corner mounting with plenty of leeway

For installation, 2 × WATTSTUNDE® MOUNT Corner Brackets in white are included. The corner design is particularly space-saving and offers a lot of flexibility when positioning on textured roof surfaces. The full-surface underside is designed for even gluing; if necessary, screwing is also possible. The ASA material is UV- and weather-resistant and visually matches well with light-colored roofs.

Cabling, fusing, and parallel connection: cleanly solved

To keep the installation clear, the appropriate cables are already provided: a connection cable for the path from the module to the controller, as well as a fuse cable for the connection from the controller to the battery. For the parallel connection of the two modules, a WATTSTUNDE® MC4.2 Connector Set is included (Y-connector), so you can combine the modules quickly and neatly.

Roof entry and cable gland: tight and neat into the vehicle

For a clean, weatherproof cable entry, the WATTSTUNDE® Roof Entry DX1/W ASA (white) as well as the WATTSTUNDE® Cable Gland for Twin Solar Cable M20×1.5 (white) are included. This keeps the cable routing protected and neat.

Gluing & Sealing: Dekasyl MS-5 plus Dekalin Adhesive Set

For gluing and sealing, Dekalin Dekasyl MS-5 (white, 290 ml) is included. Additionally, a Dekalin Adhesive Set (white) is also included in the set, so that preparation and processing can be carried out cleanly.

Your benefits at a glance

  • 440 W total power through 2 modules – plenty of solar yield for everyday mobile use
  • MOUNT Corner in white: space-saving corner design, full-surface adhesive area, ASA material
  • Parallel connection via MC4.2 Y-connector for a clean installation
  • Complete for installation: cables, fuse, roof entry, cable gland, and adhesive are included

If you are looking for a powerful solar system for your vehicle roof that remains visually discreet and is prepared directly for installation, the WATTSTUNDE® SOLA Frame Shadow 440 W Complete Set in White is a very suitable choice.





Technical Data SOLA Frame Shadow 220
Rated power 220 W
Max. daily yield (summer) 880 Wh/d
Voltage (Umpp) 30.00 V
Current (Impp) 7.37 A
Open-circuit voltage (Voc) 35.00 V
Short-circuit current (Isc) 7.74 A
Cell efficiency ≤ 26 %
Cell material N-Type Back Contact
Bypass diodes 2
Weight 11.4 kg
Dimensions 1385 x 765 x 30 mm



Technical Data SmartSolar MPPT 100 / 30
Battery voltage 12 V / 24 V
Rated charge current 30 A
Rated PV power 12 V 440 W
Rated PV power 24 V 880 W
Max. PV open-circuit voltage 100 V
Max. PV short-circuit current 35 A
Efficiency 98 %
Constant charge voltage 14.4 V / 28.8 V
Float charge voltage 13.8 V / 27.6 V
Operating temperature - 30 °C - + 60 °C
Weight 1.3 kg
Dimensions 130 x 186 x 70 mm
