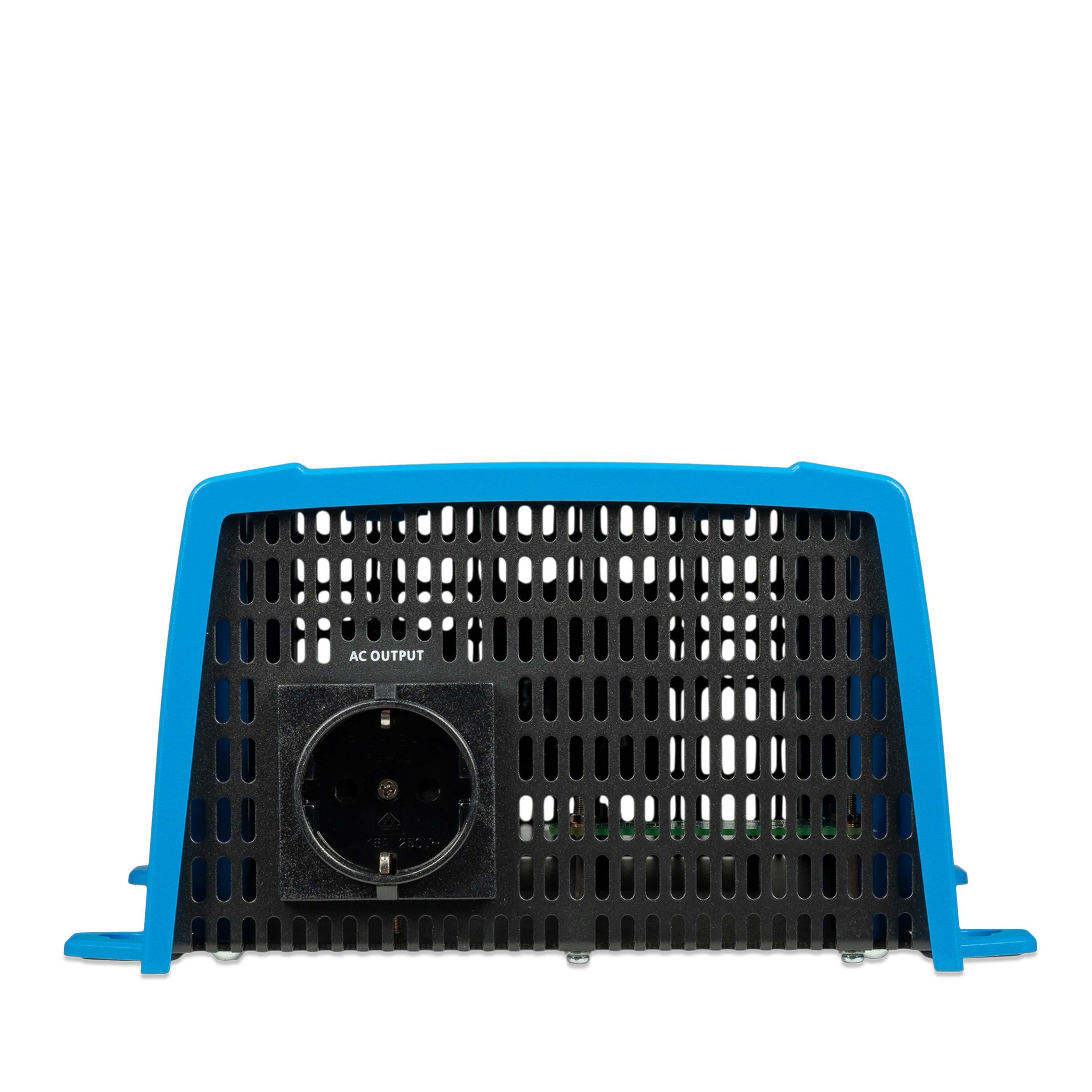

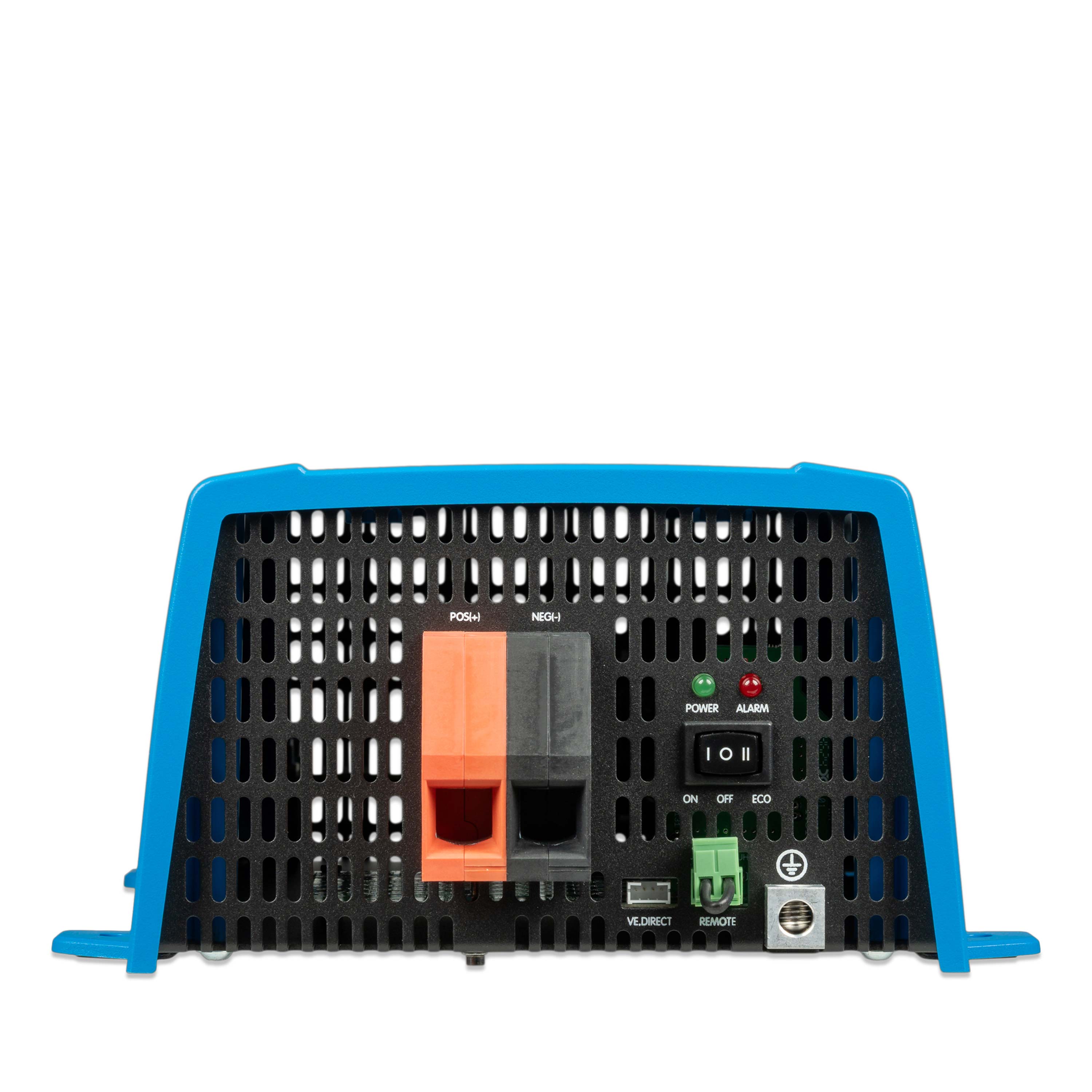

Victron Inverter 12/1600 VE.Direct Schuko

Victron Inverter 12/1600 VE.Direct Schuko – Powerful, efficient & intelligently connected

The Victron Inverter 12/1600 VE.Direct Schuko is a compact, efficient inverter that reliably converts direct current (DC) from your 12 V battery into clean 230 V alternating current. This allows you to safely and efficiently operate your household appliances while on the go or in off-grid operation – with the renowned quality of Victron Energy.

Stable performance & high efficiency

With 1600 VA (approx. 1200 W) continuous power, the inverter provides enough power for most appliances in a motorhome, boat, or off-grid system. Thanks to the high surge factor of 3:1, even devices with high inrush current (e.g., refrigerator or pump) can be operated without any problems. The efficiency is up to 93%, while the integrated ECO mode significantly reduces no-load power consumption.

Intelligent control & monitoring

Via the VE.Direct communication port, the inverter can be connected to a computer, smartphone, or tablet. This allows you to monitor all relevant parameters in real time – for example, input voltage, output power, frequency, temperature, or alarms. With the free VictronConnect app (available for Android, iOS, Windows & macOS), you have full control over settings, ECO mode, and system diagnostics – wirelessly via Bluetooth (with an optional Smart Dongle).

Well-thought-out protection functions

• Reverse polarity protection (DC input)
• Over-temperature & overload protection
• Automatic shut-off at low voltage
• Acoustic warning alarm

Flexible application & installation

With its robust screw terminals (M8) and Schuko output socket, the inverter can be installed easily and safely – without any special tools. It is ideal for mobile applications, stationary energy systems, and emergency power solutions. The inverter operates reliably in a temperature range of –40 °C to +65 °C and is designed for continuous operation.

Technical specifications (excerpt)

• Continuous power: 1600 VA / 1200 W
• Surge power: approx. 3000 W
• Input voltage: 12 V DC
• Output voltage: 230 V AC ± 2 %
• Frequency: 50 Hz ± 0.1 %
• Max. efficiency: 93 %
• ECO mode: activatable / adjustable
• Output: Schuko socket (CEE 7/3)
• Dimensions: approx. 375 × 214 × 110 mm
• Weight: approx. 10 kg
• Protection class: IP21
• Certificates: EN 60335-1, EN 62109-1, ECE R10-4

Your benefits at a glance

• 1600 VA / 1200 W continuous power
• Compact & robust design
• High efficiency up to 93 %
• ECO mode for minimal no-load power consumption
• Bluetooth connectivity via VE.Direct
• Protection against overload, overheating & reverse polarity
• Schuko output & easy installation
• Suitable for campers, boats & off-grid systems

Reliable energy – everywhere

The Victron Inverter 12/1600 VE.Direct Schuko offers you mobile power supply at the highest level. Efficient, safe, and intelligently connectable – the ideal companion for anyone who values quality, longevity, and absolute reliability.
