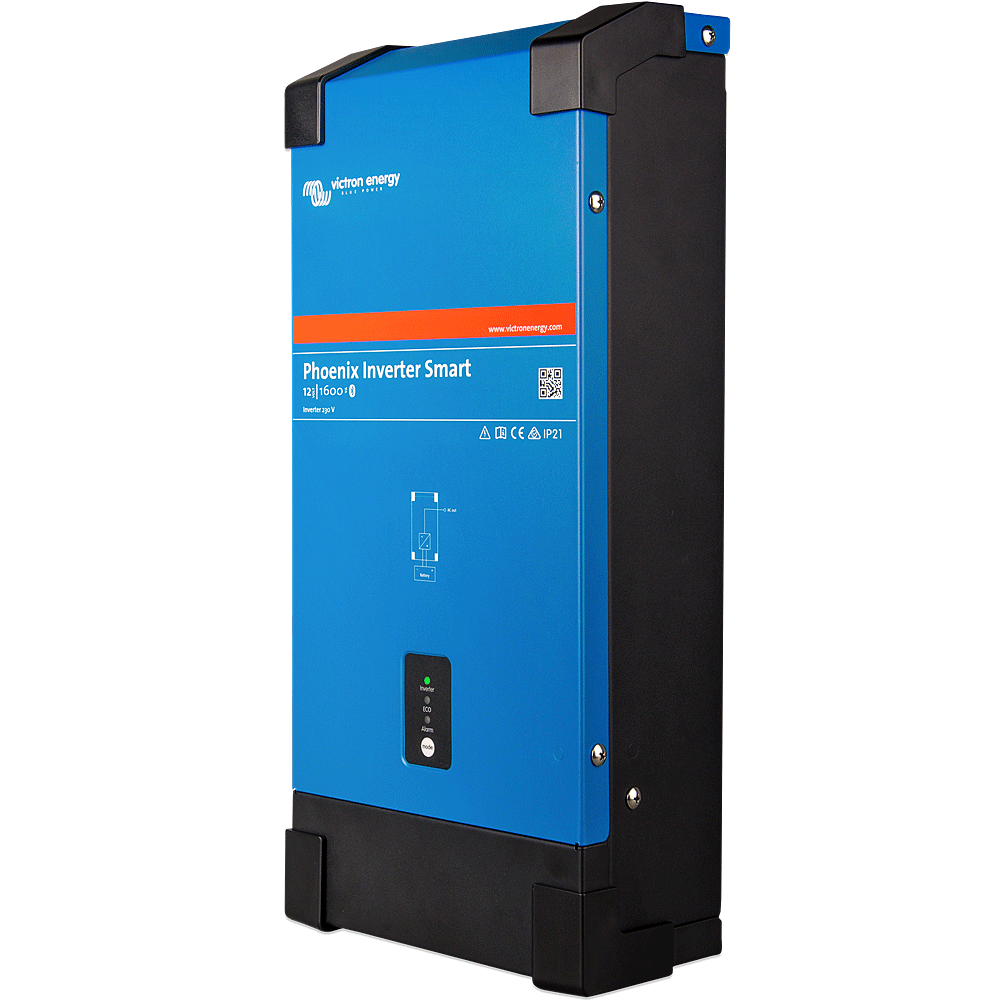

Victron Phoenix Smart 12/1600 230V Smart Inverter Bluetooth

Victron Inverter 12/1600 for 12 V Systems with Integrated Bluetooth

The Victron Phoenix 12/1600 Smart is a high-quality inverter that is perfectly suited to power your 230 V appliances at home with a pure sine wave.
The convenient Bluetooth function allows you to monitor and program the device using a smartphone or tablet.

VE.Direct Communication Port
The VE.Direct port can be connected to a computer (a VE.Direct to USB interface cable is required) to configure and monitor the same parameters.

Proven Reliability
The full bridge topology with a toroidal transformer has proven itself for years.
The inverters are short-circuit proof and protected against overheating (whether caused by overload or ambient temperature).

High Surge Power
This is required to switch on loads such as voltage converters for LED lamps, halogen lamps, or power tools.

ECO Mode
In ECO mode, the inverter switches to standby as soon as the load falls below a preset value. In standby mode, the inverter then switches on for a short period every 2.5 seconds (adjustable).
If the load exceeds the preset threshold during this time, the inverter remains switched on

Remote On/Off Switching
A remote on/off switch or relay contact can be connected to the two-pin plug.
Alternatively, the H connection (left) of the two-pin plug can be connected to the battery positive terminal, or the L connection (right) of the two-pin plug to the battery negative terminal (or, for example, to the bodywork of a vehicle).

The following features distinguish the device

• Built-in Bluetooth function for convenient remote monitoring
• 230 V pure sine wave with high output power
• Fully configurable via a tablet or smartphone.
• Low battery voltage alarm
• Thresholds for switching off and restarting at low battery voltage levels.
• Dynamic shutdown: load-dependent shutdown threshold
• Output voltage: 230V AC
• Frequency: 50 Hz or 60 Hz
• Threshold for ECO mode on/off and ECO mode sensor
