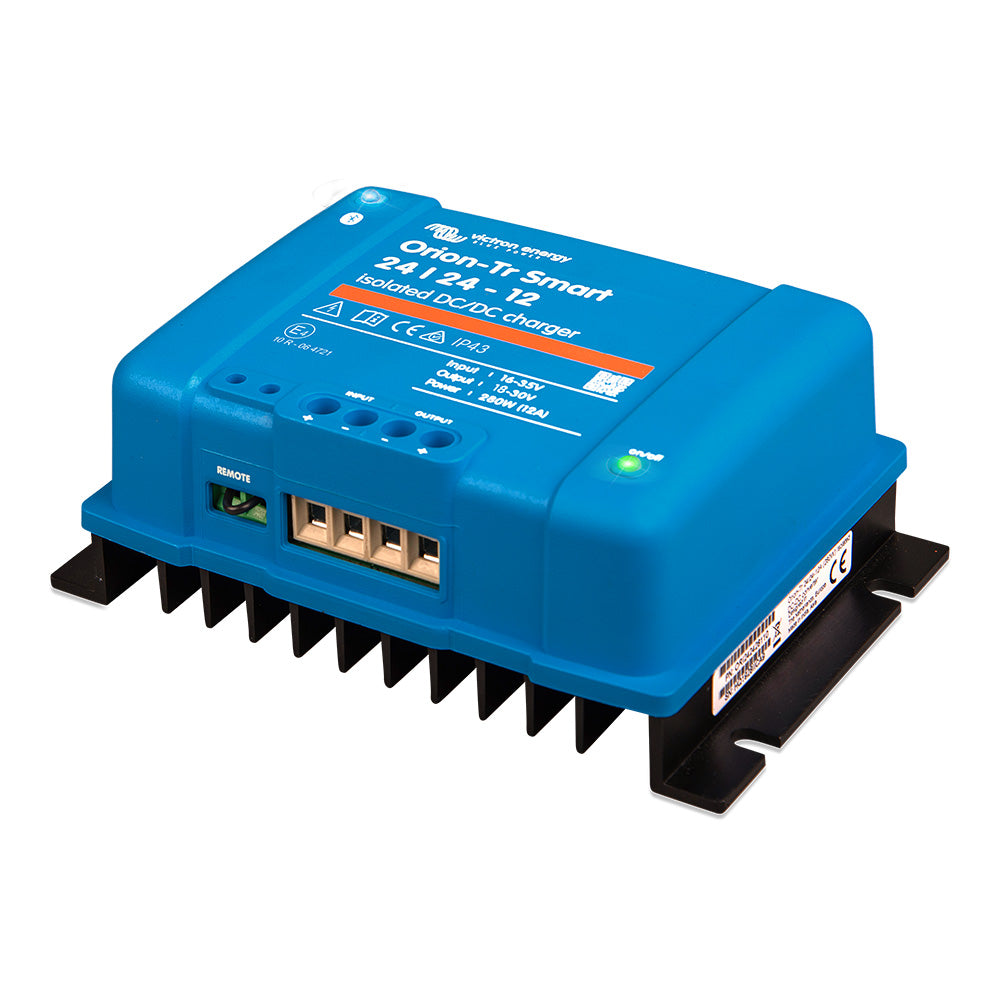

Victron Orion-Tr Smart 24/24-12A DC-DC Charger Isolated (280W)

Victron Orion-Tr Smart 24/24-12A isolated DC-DC charger (280W)

  • 3-stage charger with integrated Bluetooth
  • for use in dual battery systems
  • with engine start detection mechanism
  • also suitable for lithium batteries
  • An unlimited number of devices can be connected in parallel.
  • No special tools required for installation
  • Galvanically isolated with 200V DC between input, output and enclosure

Sale price154,76 €

Tax included. Shipping calculated at checkout

SKU: 300-3303

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

Orion-Tr Smart Isolated DC-DC 24/24 12A Charger

The Orion-Tr Smart DC-DC charger is a professional, DC-to-DC adaptive 3-stage charger with integrated Bluetooth.

For use in dual-battery systems in vehicles or on boats, where the (intelligent) alternator and the starter battery are used to charge the service battery. The device can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch. It features an engine detection mechanism.

The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead and lithium batteries. Models are available up to 400 W and an unlimited number of devices can be connected in parallel to increase the output power.





Suitable for Bluetooth Smart
Monitoring, changing settings, and updating the charger when new software features become available can be done with any Bluetooth-enabled smartphone, tablet, or other
device.

Fully programmable
- Battery charging algorithm (configurable) or fixed output.
- Intelligent generator compatibility: engine detection.

Adaptive 3-stage charging algorithm: Constant Current – Constant Voltage – Maintenance
For lead batteries, it is important that the recovery time is kept short in the event of shallow discharges to avoid overcharging the battery. After a deep discharge, the constant voltage duration is automatically extended to ensure that the battery charges completely.
For lithium batteries, the recovery time is fixed, with a default setting of 2 hours. Alternatively, a fixed output voltage can be selected.

Remote On/Off
A remote on/off switch or relay contact can be connected to the two-pin plug.
Alternatively, the H connection (right) of the two-pin plug can be connected to a battery positive terminal or the L connection (left) of the two-pin plug to the battery negative terminal (or, for example, to the body
of a vehicle).



All models are short-circuit proof and can be connected in parallel to increase the output current.
An unlimited number of devices can be connected in parallel.

Over-temperature protection
At high ambient temperatures, the output current is reduced.

Protection class IP43
If the screw terminals on the device are installed facing downwards.

Screw terminals
No special tools are required for installation
