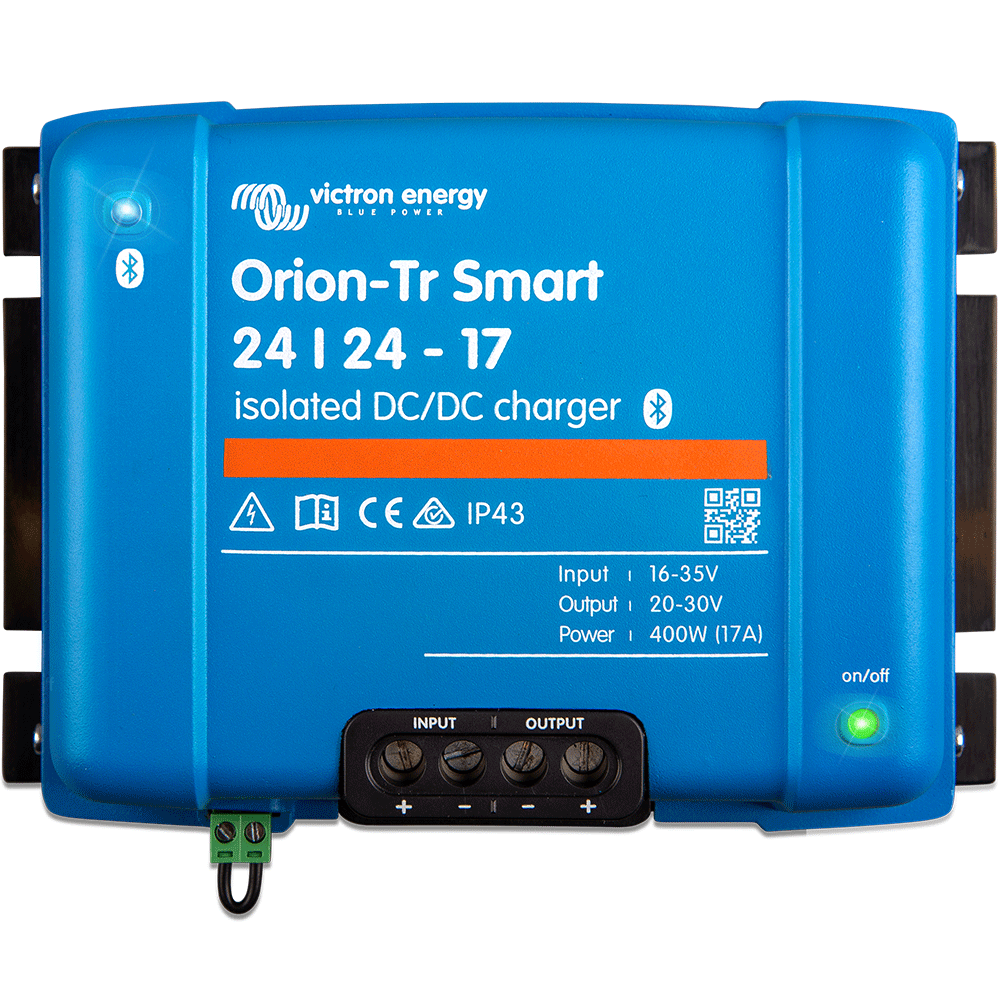

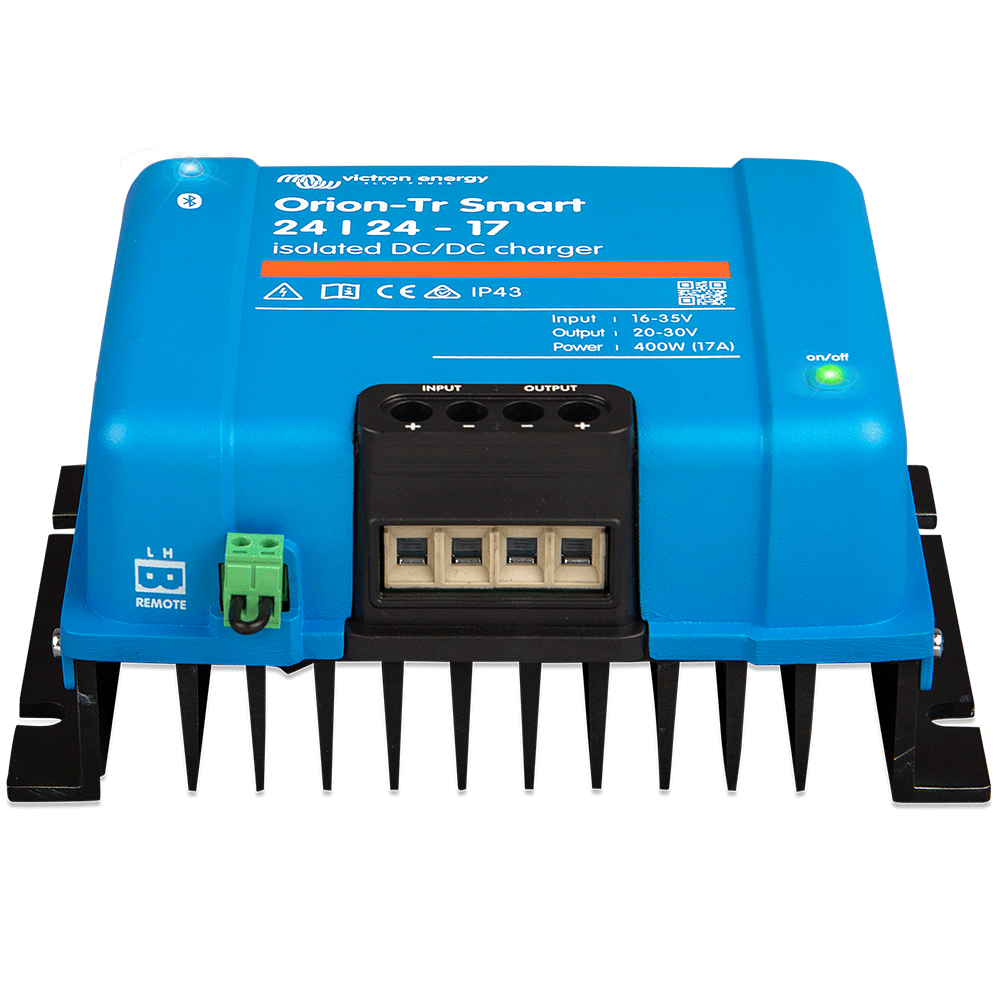

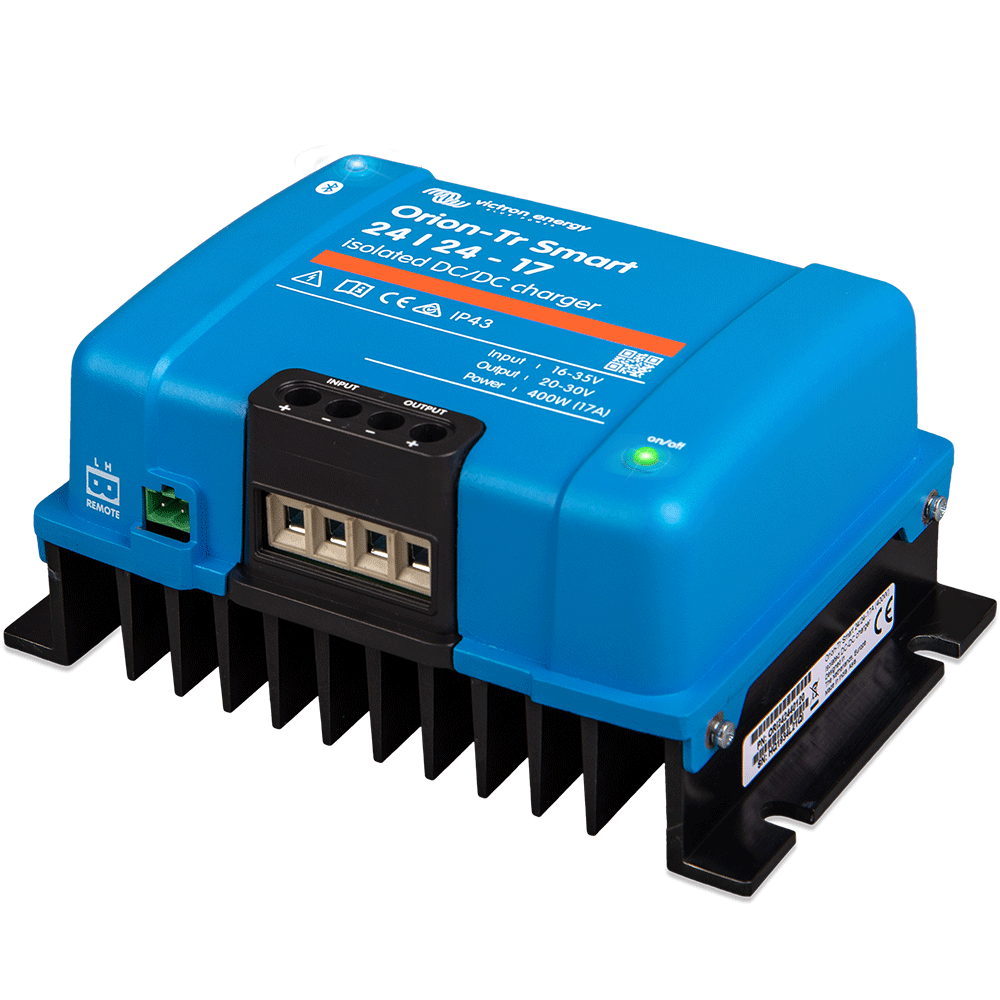

Victron Orion-Tr Smart 24/24-17A DC-DC Charger Isolated (400W)

  • 3-stage charger with integrated Bluetooth
  • for use in dual battery systems
  • with motor run detection mechanism
  • also suitable for lithium batteries
  • An unlimited number of devices can be connected in parallel.
  • No special tools required for installation
  • Galvanically isolated with 200V DC between input, output and housing

Sale price237,70 €

Tax included. Shipping calculated at checkout

SKU: 300-3306

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

Orion-Tr Smart Isolated DC-DC 24/24-17A Charger

The Orion-Tr Smart 24/24-17A 400W charger is a professional, DC to DC adaptive 3-stage charger with integrated Bluetooth.

For use in dual battery systems in vehicles or on boats, where the (intelligent) alternator and the starter battery are used to charge the service battery. The device can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch. It features an engine running detection mechanism.

  • Ready for Bluetooth Smart
  • Fully programmable
  • Adaptive 3-stage charging algorithm: Constant current – Constant voltage – Maintenance
  • Remote on/off
  • All models are short-circuit proof and can be connected in parallel to increase the output current
  • Over-temperature protection
  • Protection class IP43
  • Screw terminals

The most important technical data | Model 24/24-17A (400W)

Input voltage range 20-35 V
Low voltage shutdown 14 V
Low voltage restart 15 V
Rated output voltage 24.2 V
Output voltage setting range 20-30 V
Output voltage tolerance +/- 0.2 V
Output noise 2 mV rms
Cont. output current at rated output voltage and 40 °C 17 A
Maximum output current (10 s) at rated output voltage minus 20 % 25 A
Short-circuit output current 40 A
Efficiency 89 %
No-load input current < 80 mA
