WATTSTUNDE® SOLA Frame Shadow 220 W Complete Set in white with charge controller for direct installation
- Power: 220 watts
- N-type back-contact cells with anti-shading architecture
- Up to 80% more power in partial shade
- Weight: 11.4 kg
- with Victron SmartSolar 75/15 MPPT Bluetooth charge controller
- 1.5 m battery connection cable with 20 A fuse
Tax included. Shipping calculated at checkout
- 1× WATTSTUNDE® SOLA Frame Shadow Solarmodul 220 W (Inkl. 19 % MwSt.)
- 1× Victron SmartSolar MPPT 75/15 Bluetooth integriert (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® MOUNT Solarmodul Halterung corner weiß (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® Dachdurchführung DX1/W ASA weiß (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® Kabelverschraubung Twinsolarkabel M20x1.5 weiß (Inkl. 19 % MwSt.)
- 1× Dekalin Klebe-Set weiß (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® MVK 4.7 Anschlusskabel Solarmodul zu Laderegler 2x 7 Meter 4mm² (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® Sicherungskabel (mit Sicherung 20 A) 2 x 4 mm² M8/Aderendhülse 1,5 m rot/schwarz (Inkl. 19 % MwSt.)
Your legal guarantee rights

Product description
WATTSTUNDE® SOLA Frame Shadow 220 W Complete Set (White) with Charge Controller – for Direct Installation
Do you want to bring solar power directly into your vehicle without assembling all the components yourself? This white complete set is designed exactly for that: a coordinated combination of a high-performance solar module, a suitable MPPT charge controller, pre-assembled wiring with a fuse, and mounting and cable entry accessories in white. This ensures a clean, organized, and practical installation – from the roof to the battery.
The SOLA Frame Shadow 220 Wp is designed for mobile use. Partial shading, high temperatures, and changing light conditions are part of everyday life on a vehicle roof. The Shadow series is designed to deliver stable power even under such conditions and support the onboard power supply on the go.

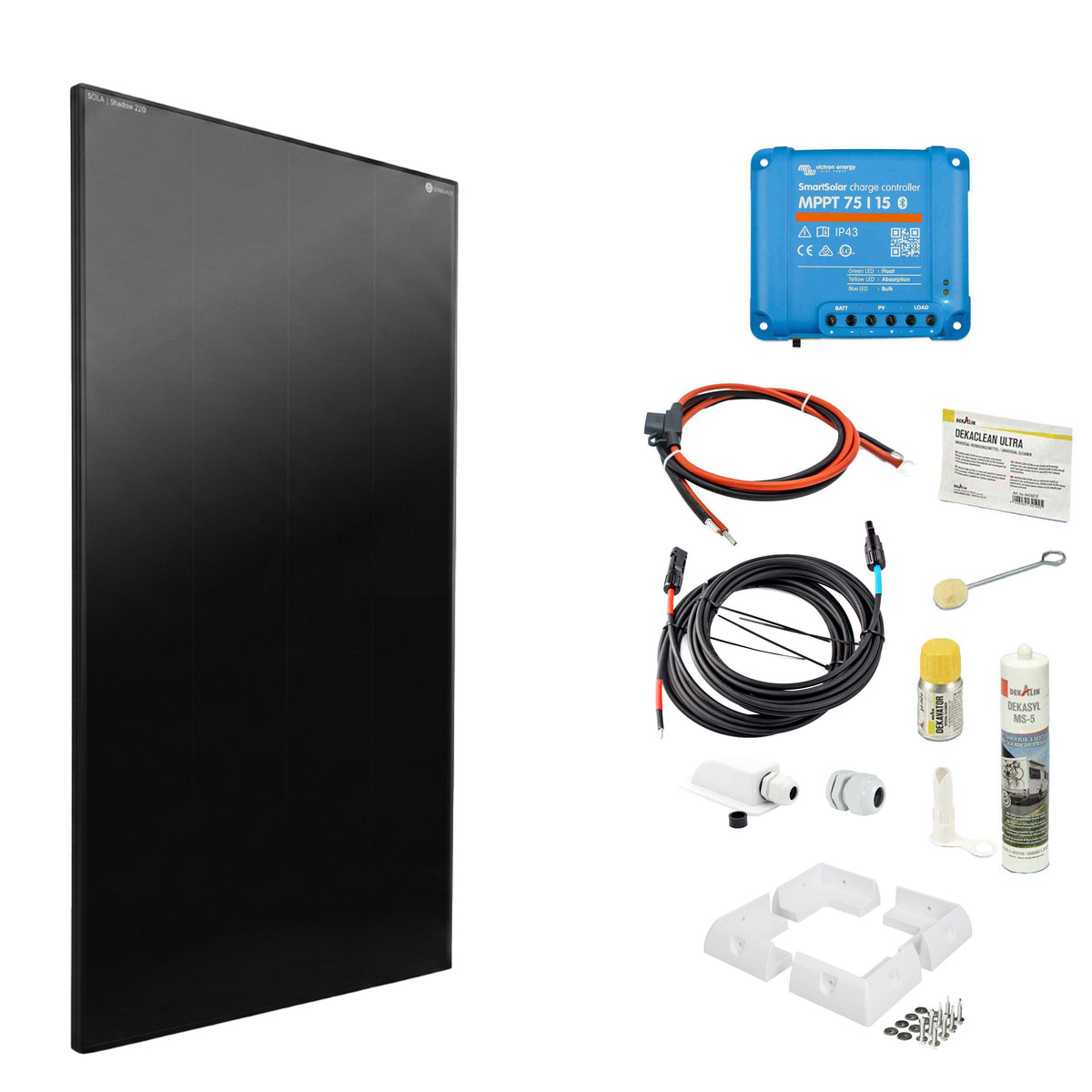

Set Contents
- 1 × Victron SmartSolar MPPT 75/15 (integrated Bluetooth)
- 1 × WATTSTUNDE® fuse cable (with 20 A fuse)
- 1 × WATTSTUNDE® MVK 4.7 connection cable solar module → charge controller
- 1 × Dekalin adhesive set (white)
- 1 × WATTSTUNDE® cable gland Twin solar cable M20×1.5 (white)
- 1 × WATTSTUNDE® roof entry DX1/W ASA (white)
- 1 × WATTSTUNDE® SOLA Frame Shadow 220 solar module
- 1 × WATTSTUNDE® MOUNT Corner bracket (white)
MPPT charge controller: efficient charging and convenient monitoring
The integrated Victron SmartSolar MPPT 75/15 ensures that the solar yield is efficiently charged into the battery. Thanks to Bluetooth, you can connect the controller directly to the VictronConnect app to view values and adjust settings – without an additional dongle.
Direct installation: wiring & protection already provided
To ensure a quick installation, the set is designed with suitable cables and protection: The MVK 4.7 connection cable connects the solar module and charge controller, the fuse cable connects the controller to the battery and includes a replaceable 20 A fuse. This creates a clean, protected connection without unnecessary additional purchases.
WATTSTUNDE® MOUNT Corner: compact mounting, discreet appearance
For roof mounting, the WATTSTUNDE® MOUNT Corner bracket in white is used. With its compact corner design (external dimensions approx. 10.7 cm per side), it is ideal when space on the roof is limited or you want particularly flexible positioning. By omitting a front edge, no unnecessary overhang is created – practical for tight roof surfaces.
The full-surface underside is designed for even bonding (e.g. with MS polymer adhesives). If required, screw mounting is also possible. The solid ASA plastic material is UV- and weather-resistant, and the aerodynamic shape can reduce wind noise. The white look also fits particularly well on light-colored roofs.
Your benefits at a glance
- Complete set for direct installation: module, MPPT, cables, fuse, mounting and cable entry accessories
- 220 Wp module power for significantly more solar yield on the go
- Protected connection: battery cable with replaceable 20 A fuse
- White accessories for a discreet look on light-colored roofs
- MOUNT Corner: space-saving corner design, full-surface adhesive area, ASA material, 5-year warranty
If you are looking for a high-performance solar system for your vehicle roof that looks clean and is prepared directly for installation, the WATTSTUNDE® SOLA Frame Shadow 220 W complete set in white is a very suitable choice.
| Technical Data | SOLA Frame Shadow 220 |
| Rated power | 220 W |
| Max. daily yield (summer) | 880 Wh/d |
| Voltage (Umpp) | 30.00 V |
| Current (Impp) | 7.37 A |
| Open-circuit voltage (Voc) | 35.00 V |
| Short-circuit current (Isc) | 7.74 A |
| Cell efficiency | ≤ 26 % |
| Cell material | N-Type Back Contact |
| Bypass diodes | 2 |
| Weight | 11.4 kg |
| Dimensions | 1385 x 765 x 30 mm |
| Technical Data | SmartSolar MPPT 75 / 15 |
| Battery voltage | 12 V / 24 V |
| Rated charging current | 15 A |
| Rated PV power 12 V | 220 W |
| Rated PV power 24 V | 440 W |
| Max. PV open-circuit voltage | 75 V |
| Max. PV short-circuit current | 15 A |
| Efficiency | 98 % |
| Constant charging voltage | 14.4 V / 28.8 V |
| Maintenance charging voltage | 13.8 V / 27.6 V |
| Operating temperature | - 30 °C - + 60 °C |
| Weight | 0.5 kg |
| Dimensions | 100 x 113 x 40 mm |
