WATTSTUNDE® SOLA Frame Shadow 220 W Complete Set in black with charge controller for direct installation
- Power: 220 watts
- N-type back-contact cells with anti-shading architecture
- Up to 80% more power in partial shade
- Weight: 11.4 kg
- with Victron SmartSolar 75/15 MPPT Bluetooth charge controller
- 1.5 m battery connection cable with 20 A fuse
Tax included. Shipping calculated at checkout
- 1× WATTSTUNDE® SOLA Frame Shadow Solarmodul 220 W (Inkl. 19 % MwSt.)
- 1× Victron SmartSolar MPPT 75/15 Bluetooth integriert (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® MOUNT Solarmodul Halterung corner schwarz (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® Dachdurchführung DX1/S ASA schwarz (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® Kabelverschraubung Twinsolarkabel M20x1.5 schwarz (Inkl. 19 % MwSt.)
- 1× Dekalin Klebe-Set schwarz (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® MVK 4.7 Anschlusskabel Solarmodul zu Laderegler 2x 7 Meter 4mm² (Inkl. 19 % MwSt.)
- 1× WATTSTUNDE® Sicherungskabel (mit Sicherung 20 A) 2 x 4 mm² M8/Aderendhülse 1,5 m rot/schwarz (Inkl. 19 % MwSt.)
Your legal guarantee rights

Product description
WATTSTUNDE® SOLA Frame Shadow 220 W Complete Set (Black) with Charge Controller – for Direct Installation
This complete set in black is a well-thought-out solution if you want to equip your vehicle roof directly with solar power – without long parts lists and without unnecessary compromises on aesthetics. The set includes the Victron SmartSolar MPPT 75/15 (integrated Bluetooth), the appropriate cabling incl. 20 A fuse, as well as black mounting, cable entry, and sealing components. This allows you to install the system neatly and reliably recharge the onboard battery.
With the SOLA Frame Shadow 220 Wp, you get a powerful module size for mobile use. On the roof, partial shading, high temperatures, and changing light conditions are part of everyday life – the Shadow series is designed to deliver as constant energy as possible even under these conditions.

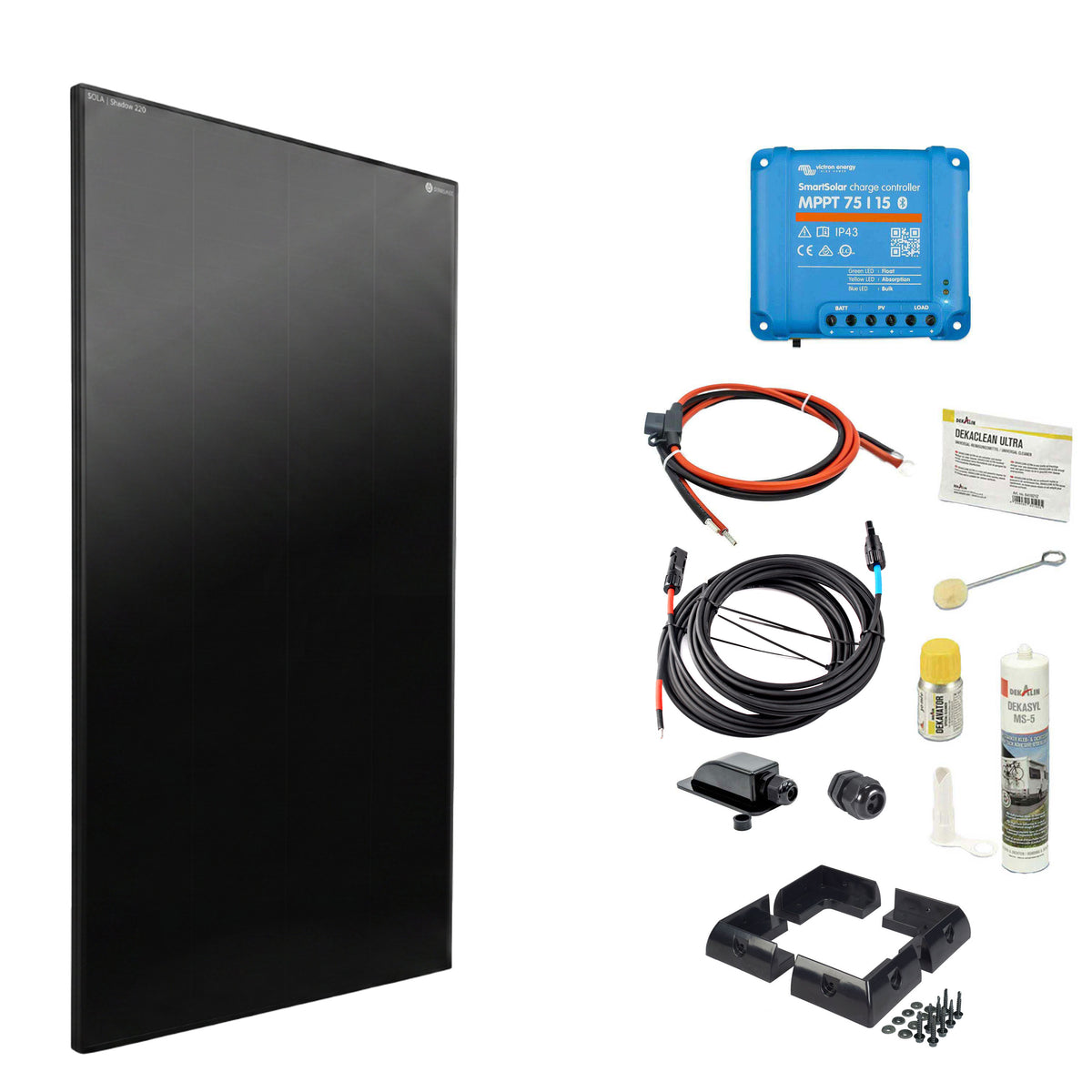

Set Contents (Black)
- 1 × Victron SmartSolar MPPT 75/15 (integrated Bluetooth)
- 1 × WATTSTUNDE® Fuse Cable (with 20 A fuse)
- 1 × WATTSTUNDE® MVK 4.7 Connection Cable Solar Module → Charge Controller
- 1 × Dekalin Adhesive Set (black)
- 1 × WATTSTUNDE® Cable Gland Twin Solar Cable M20×1.5 (black)
- 1 × WATTSTUNDE® Roof Entry DX1/W ASA (black)
- 1 × WATTSTUNDE® SOLA Frame Shadow 220 Solar Module
- 1 × WATTSTUNDE® MOUNT Corner Bracket (black)
Victron SmartSolar MPPT 75/15: Efficient Charge Controller with App Monitoring
The SmartSolar MPPT 75/15 efficiently brings the solar yield into your battery via MPPT tracking. Thanks to Bluetooth, the controller can be monitored and configured directly via the VictronConnect App – without an additional adapter.
Direct Installation: Cables, Fusing, and Cable Entry Included
For uncomplicated installation, the set is equipped with suitable cables and fusing: The MVK 4.7 Connection Cable connects the solar module and charge controller, the fuse cable connects the controller to the battery and contains a replaceable 20 A fuse. In addition, a roof entry and cable gland are included for neat, sealed cable routing.
Black MOUNT Corner Bracket: Compact, Stable, and Visually Discreet
For roof mounting, the WATTSTUNDE® MOUNT Corner Bracket in Black is included. The corner design is particularly space-saving and offers plenty of flexibility in positioning – helpful when roof surfaces are already occupied by hoods, antennas, or skylights. By omitting a front edge, no unnecessary overhang is created.
The full-surface underside is designed for even bonding (e.g. with MS polymer adhesives); alternatively, it can also be screwed on. The ASA solid plastic is UV- and weather-resistant, the aerodynamic shape can reduce wind noise – and the black look fits particularly well with dark vehicle roofs or discreet setups.
Your Benefits at a Glance
- Complete set for direct installation: Module, MPPT, cables, fuse, mounting and cable entry accessories
- 220 Wp module power for strong solar yield in mobile use
- Fused connection: Battery cable with replaceable 20 A fuse
- Black accessories for a discreet, uniform look on the roof
- MOUNT Corner: space-saving corner design, full-surface adhesive area, ASA material, 5-year warranty
If you are looking for a powerful solar system for your vehicle that is prepared directly for installation and remains visually discreet on the roof, the WATTSTUNDE® SOLA Frame Shadow 220 W Complete Set in Black is a very suitable choice.
| Technical Data | SOLA Frame Shadow 220 |
| Rated Power | 220 W |
| Max. Daily Yield (Summer) | 880 Wh/d |
| Voltage (Umpp) | 30.00 V |
| Current (Impp) | 7.37 A |
| Open-Circuit Voltage (Voc) | 35.00 V |
| Short-Circuit Current (Isc) | 7.74 A |
| Cell Efficiency | ≤ 26 % |
| Cell Material | N-Type Back Contact |
| Bypass Diodes | 2 |
| Weight | 11.4 kg |
| Dimensions | 1385 x 765 x 30 mm |
| Technical Data | SmartSolar MPPT 75 / 15 |
| Battery Voltage | 12 V / 24 V |
| Rated Charging Current | 15 A |
| Rated PV Power 12 V | 220 W |
| Rated PV Power 24 V | 440 W |
| Max. PV Open-Circuit Voltage | 75 V |
| Max. PV Short-Circuit Current | 15 A |
| Efficiency | 98 % |
| Constant Charging Voltage | 14.4 V / 28.8 V |
| Float Charging Voltage | 13.8 V / 27.6 V |
| Operating Temperature | - 30 °C - + 60 °C |
| Weight | 0.5 kg |
| Dimensions | 100 x 113 x 40 mm |
