WATTSTUNDE® SOLA Frame Shadow 240 W Solar Module Complete Set in White with Charge Controller

  • Power: 2 x 120 watts
  • N-type back-contact cells with anti-shading architecture
  • Up to 80% more power in partial shade
  • Weight: 6.1 kg
  • with Victron SmartSolar 100/20 MPPT Bluetooth charge controller
  • 1.5 m battery connection cable with 20 A fuse

Direkt zu den Produktinformationen ↓
Modulserie
Farbe der Halterung
Leistung:
Sale price907,32 €
Neues Produkt

Tax included. Shipping calculated at checkout

SKU: WS22-SFS-240100

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

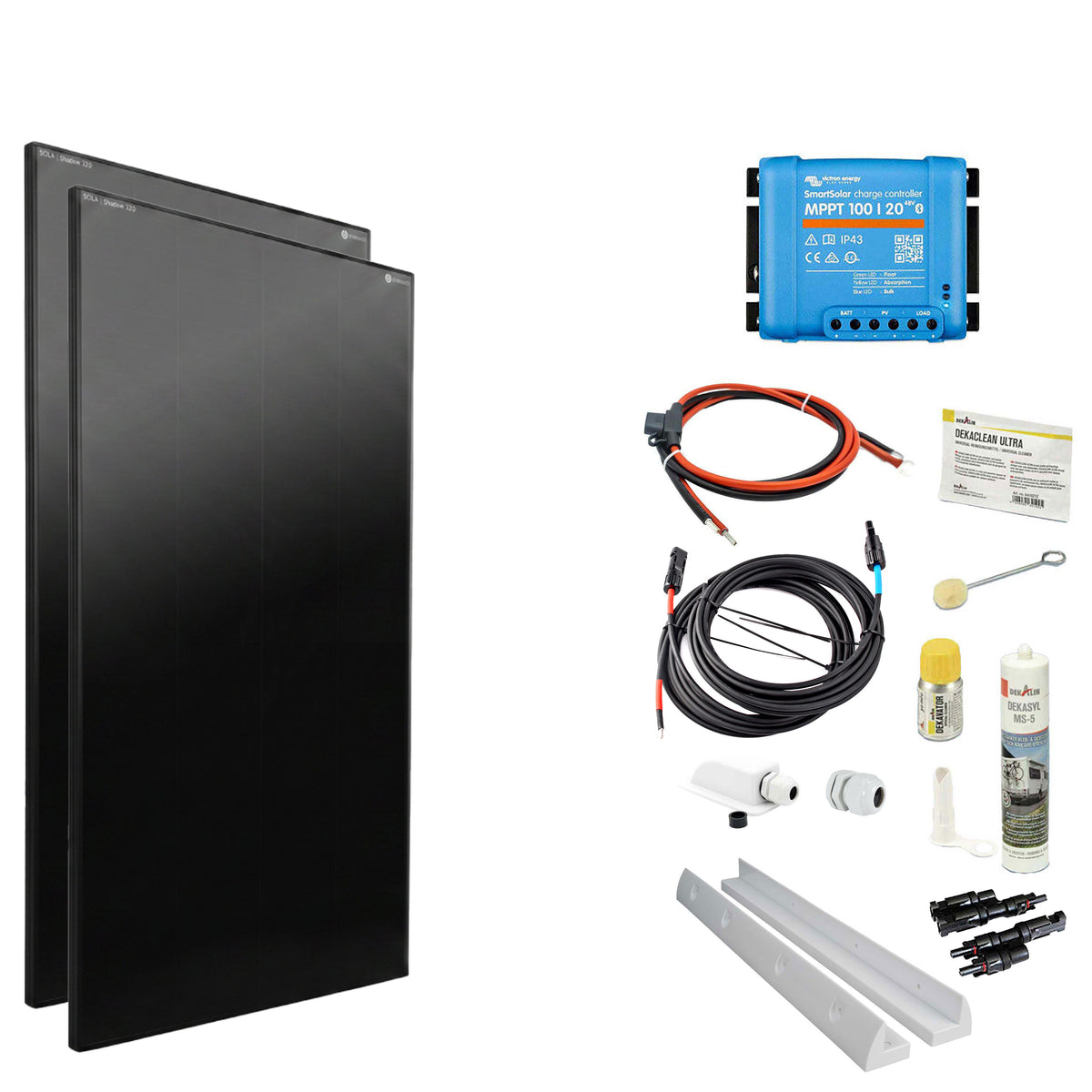

WATTSTUNDE® SOLA Frame Shadow 240 W Solar Module Complete Set (White) with Charge Controller

This complete set is the ideal choice if you want to start with more solar power directly on the vehicle roof: The WATTSTUNDE® SOLA Frame Shadow 240 W Set in White combines two Shadow modules, a powerful Victron MPPT controller, as well as cabling, mounting and cable entry accessories into a perfectly coordinated package. This allows you to set up the system neatly and charge your onboard battery efficiently via solar power.

The 240 W is derived from 2 × SOLA Frame Shadow 120. This allows you to make good use of the roof area and provides a solid foundation for everyday mobile use – even when light and temperature are not always ideal.

Set Contents

  • 1 × Victron SmartSolar MPPT 100/20 (integrated Bluetooth, up to 48 V)
  • 2 × WATTSTUNDE® SOLA Frame Shadow 120
  • 2 × WATTSTUNDE® MOUNT Solar Module Mount 53 (white)
  • 1 × Dekalin Dekasyl MS-5 (white, 290 ml)
  • 1 × Dekalin Adhesive Set (white)
  • 1 × WATTSTUNDE® MC4.2 Connector Set (Y-connector for parallel connection)
  • 1 × WATTSTUNDE® MVK 4.7 Connection Cable Solar Module → Charge Controller
  • 1 × WATTSTUNDE® Fuse Cable (with 20 A fuse)
  • 1 × WATTSTUNDE® Roof Entry DX1/W ASA (white)
  • 1 × WATTSTUNDE® Cable Gland Twin Solar Cable M20×1.5 (white)

Victron SmartSolar MPPT 100/20: more yield, conveniently via Bluetooth

The Victron SmartSolar MPPT 100/20 is designed for systems up to 48 V and operates with ultra-fast MPPT tracking. Especially with changing irradiance, this can increase the energy yield compared to PWM controllers. The controller is also designed to find the optimal operating point even in partial shading.

Cabling & Fusing: perfectly matched in the set

To ensure easy connection, the important cables are already included: The WATTSTUNDE® MVK 4.7 Connection Cable connects the solar modules to the charge controller. The WATTSTUNDE® Fuse Cable connects the controller to the battery and is equipped with a replaceable 20 A fuse (M8/wire end ferrule, red/black).

Mounting & Roof Entry in White: clean installation without mixing parts

For roof mounting, 2 × WATTSTUNDE® MOUNT Solar Module Mount 53 in white are included. This allows the setup to be securely fastened and discreetly integrated into light-colored roofs.

For a neat, watertight cable entry, the WATTSTUNDE® Roof Entry DX1/W ASA (white) as well as the WATTSTUNDE® Cable Gland for Twin Solar Cables M20×1.5 (white) are also included. This keeps the cable routing neat, protected, and weatherproof.

Bonding & Sealing: Dekasyl MS-5 plus Dekalin Adhesive Set

For bonding and sealing, Dekalin Dekasyl MS-5 (white, 290 ml) is included – a strong MS polymer adhesive for many typical applications on motorhomes or caravans. Additionally, a Dekalin Adhesive Set (white) is also included in the set so that preparation and processing can be carried out neatly.

MC4.2 Connector Set: two modules neatly connected in parallel

To allow the two modules to work together easily, a WATTSTUNDE® MC4.2 Connector Set is included (Y-connector for parallel connection). This saves cable runs and ensures a clean installation. The plug connection is robust and designed for outdoor use (plugged IP67).

Your benefits at a glance

  • 240 W total power from 2 modules – more solar yield in mobile use
  • Complete for installation: cables, fuse, mounts, roof entry, and cable gland are included
  • Dekasyl MS-5 + Adhesive Set for bonding and sealing
  • MC4.2 Y-connector for easy parallel connection of the two modules

If you are looking for a compact, powerful solar system for a vehicle roof that is technically compatible and ready to install, the WATTSTUNDE® SOLA Frame Shadow 240 W Complete Set in White is a very practical choice.





Technical Data SOLA Frame Shadow 120
Rated power 120 W
Max. daily yield (summer) 480 Wh/d
Voltage (Umpp) 30.60 V
Current (Impp) 3.93 A
Open-circuit voltage (Voc) 35.70 V
Short-circuit current (Isc) 4.13 A
Cell efficiency ≤ 26 %
Cell material N-Type Back Contact
Bypass diodes 2
Weight 6.1 kg
Dimensions 1050 x 545 x 30 mm



Technical Data SmartSolar MPPT 100 / 20
Battery voltage 12 V / 24 V /48 V
Rated charge current 20 A
Rated PV power 12 V 290 W
Rated PV power 24 V / 48 V 580 W / 1160 W
Max. PV open-circuit voltage 100 V
Max. PV short-circuit current 20 A
Efficiency 98 %
Constant charge voltage 14.4 V / 28.8 V / 57.6 V
Float charge voltage 13.8 V / 27.6 V / 55.2 V
Operating temperature - 30 °C - + 60 °C
Weight 0.65 kg
Dimensions 100 x 113 x 60 mm
