WATTSTUNDE® SOLA Frame Shadow 240 W Solar Module Complete Set in Black with Charge Controller

  • Power: 2 x 120 watts
  • N-type back-contact cells with anti-shading architecture
  • Up to 80% more power in partial shade
  • Weight: 6.1 kg
  • with Victron SmartSolar 100/20 MPPT Bluetooth charge controller
  • 1.5 m battery connection cable with 20 A fuse

Direkt zu den Produktinformationen ↓
Modulserie
Farbe der Halterung
Leistung:
Sale price907,32 €
Neues Produkt

Tax included. Shipping calculated at checkout

SKU: WS22-SFS-240200

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

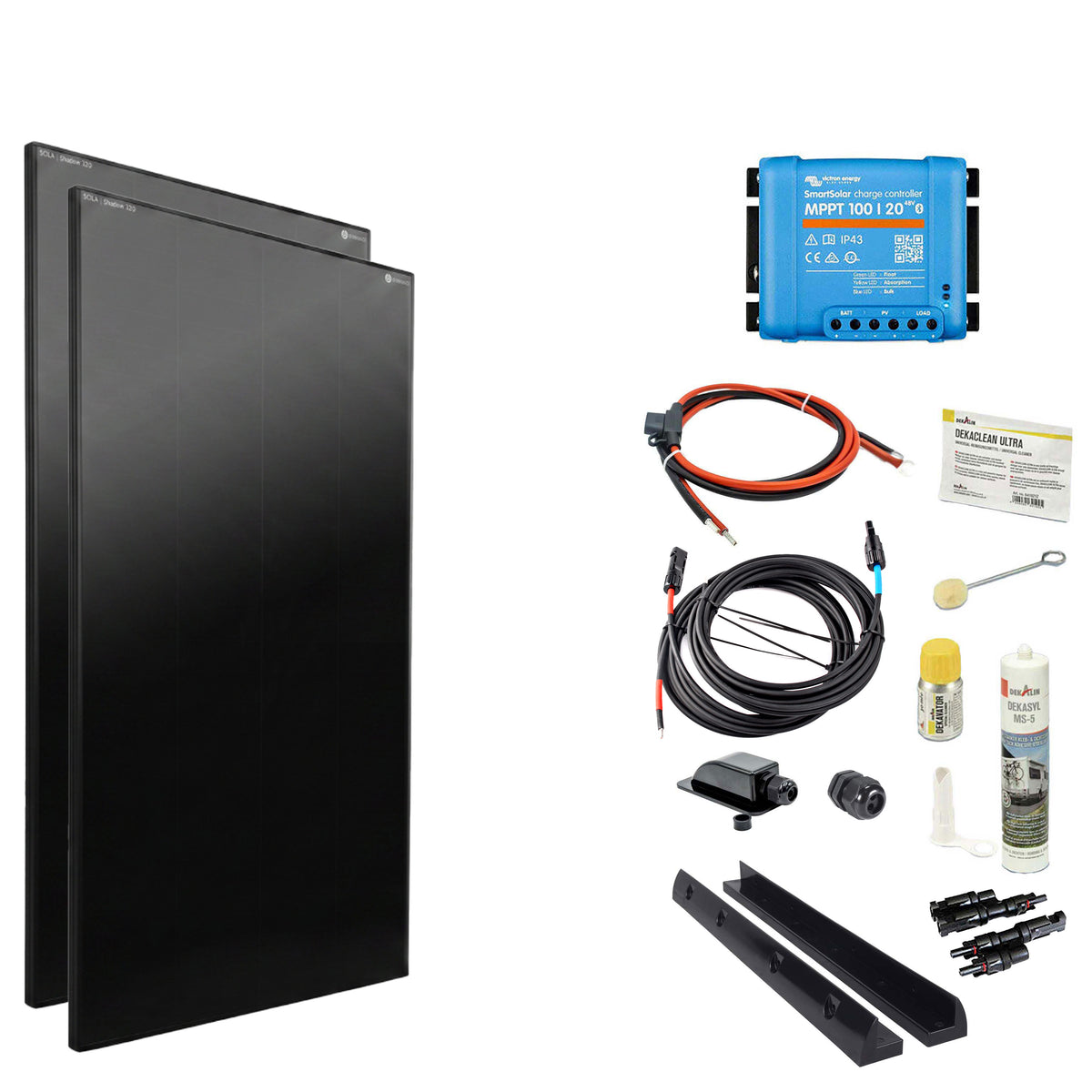

WATTSTUNDE® SOLA Frame Shadow 240 W Solar Module Complete Set (Black) with Charge Controller

The WATTSTUNDE® SOLA Frame Shadow 240 W Complete Set in Black is a well-thought-out solution if you want to start with more solar power directly on the vehicle roof while preferring a discreet, uniform look. The set combines two Shadow modules with a powerful Victron MPPT controller as well as matching cables, fuse, and roof accessories in black. This allows you to install the system neatly, route the cables properly, and reliably charge your onboard battery via solar power.

The 240 W result from 2 × SOLA Frame Shadow 120. This allows you to use the roof area efficiently and create a strong basis for everyday mobile use – even when partial shading, heat, or changing light conditions on the road are part of the equation.

Set Contents

  • 1 × Victron SmartSolar MPPT 100/20 (integrated Bluetooth, up to 48 V)
  • 2 × WATTSTUNDE® SOLA Frame Shadow 120 (240 W total)
  • 2 × WATTSTUNDE® MOUNT Solar Module Mount 53 (black)
  • 1 × Dekalin Dekasyl MS-5 (black, 290 ml)
  • 1 × Dekalin Adhesive Set (black)
  • 1 × WATTSTUNDE® MC4.2 Connector Set (Y-connector for parallel connection)
  • 1 × WATTSTUNDE® MVK 4.7 Connection Cable Solar Module → Charge Controller
  • 1 × WATTSTUNDE® Fuse Cable (with 20 A fuse)
  • 1 × WATTSTUNDE® Roof Entry DX1/W ASA (black)
  • 1 × WATTSTUNDE® Cable Gland Twin Solar Cable M20×1.5 (black)

Victron SmartSolar MPPT 100/20 (up to 48 V): fast tracking, live data via Bluetooth

The Victron SmartSolar MPPT 100/20 is designed for systems up to 48 V and operates with ultra-fast MPPT tracking. Especially on cloudy days and with changing irradiance, this can increase the energy yield compared to PWM controllers. The controller is also designed to find the optimal operating point even in partial shading.

Cabling & Fusing: practically prepared

For an uncomplicated installation, the appropriate cables are already included in the set: The WATTSTUNDE® MVK 4.7 Connection Cable connects the solar modules to the charge controller. The WATTSTUNDE® Fuse Cable connects the controller to the battery and is equipped with a replaceable 20 A fuse (M8/wire end ferrule, red/black).

Black roof components: installation, entry, and cable routing all in one

To keep the setup visually clean, the visible parts are designed in black: 2 × WATTSTUNDE® MOUNT Solar Module Mount 53 (black) for stable roof mounting, the WATTSTUNDE® Roof Entry DX1/W ASA (black) for cable entry, and the WATTSTUNDE® Cable Gland for Twin Solar Cable M20×1.5 (black) for a tight, neat entry.

Bonding & Sealing: Dekasyl MS-5 plus Dekalin Adhesive Set

For bonding and sealing, Dekalin Dekasyl MS-5 (black, 290 ml) is included – a strong MS polymer adhesive for typical applications on motorhomes or caravans. Additionally, a Dekalin Adhesive Set (black) is also included in the set so that preparation and processing can be carried out neatly.

MC4.2 Connector Set: simply connect two modules in parallel

For the parallel connection of the two modules, a WATTSTUNDE® MC4.2 Connector Set is included (Y-connector). This saves cable runs and ensures a clean installation. The plug connection is robust and designed for outdoor use (plugged IP67).

Your benefits at a glance

  • 240 W total power from 2 modules – more solar yield in mobile use
  • Complete for installation: cables, fuse, mounts, roof entry, and cable gland are included
  • Dekasyl MS-5 + Adhesive Set for bonding and sealing
  • MC4.2 Y-connector for easy parallel connection of the two modules
  • Black components for a discreet, uniform roof look

If you are looking for a powerful solar system for the vehicle roof that is technically well-matched and visually inconspicuous, the WATTSTUNDE® SOLA Frame Shadow 240 W Complete Set in Black is a very suitable choice.





Technical Data SOLA Frame Shadow 120
Rated power 120 W
Max. daily yield (summer) 480 Wh/d
Voltage (Umpp) 30.60 V
Current (Impp) 3.93 A
Open-circuit voltage (Voc) 35.70 V
Short-circuit current (Isc) 4.13 A
Cell efficiency ≤ 26 %
Cell material N-Type Back Contact
Bypass diodes 2
Weight 6.1 kg
Dimensions 1050 x 545 x 30 mm



Technical Data SmartSolar MPPT 100 / 20
Battery voltage 12 V / 24 V /48 V
Rated charging current 20 A
Rated PV power 12 V 290 W
Rated PV power 24 V / 48 V 580 W / 1160 W
Max. PV open-circuit voltage 100 V
Max. PV short-circuit current 20 A
Efficiency 98 %
Constant charging voltage 14.4 V / 28.8 V / 57.6 V
Float charging voltage 13.8 V / 27.6 V / 55.2 V
Operating temperature - 30 °C - + 60 °C
Weight 0.65 kg
Dimensions 100 x 113 x 60 mm
