WATTSTUNDE® SOLA Frame Shadow 300 W Solar Module Complete Set in White with Charge Controller

  • Power: 2 x 150 watts
  • N-type back-contact cells with anti-shading architecture
  • Up to 80% more power in partial shade
  • Weight: 7.7 kg
  • with Victron SmartSolar 100/30 MPPT Bluetooth charge controller
  • 1.5 m battery connection cable with 30 A fuse

Direkt zu den Produktinformationen ↓
Modulserie
Farbe der Halterung
Leistung:
Sale price1.096,79 €
Neues Produkt

Tax included. Shipping calculated at checkout

SKU: WS22-SFS-300100

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

WATTSTUNDE® SOLA Frame Shadow 300 W Solar Module Complete Set (White) with Charge Controller

With this complete set in white, you get a powerful, perfectly coordinated solar solution for the vehicle roof – including an MPPT charge controller, pre-assembled wiring, circuit protection, and mounting and cable entry accessories. The set is assembled so that you can install it directly.

The 300 W is generated by 2 × SOLA Frame Shadow 150. This is a strong basis for greater self-sufficiency in everyday life, e.g. for a portable refrigerator, lights, chargers, or regular consumers on the onboard electrical system. Since partial shading and changing light are normal on the roof, the Shadow series is designed for exactly these practical conditions.

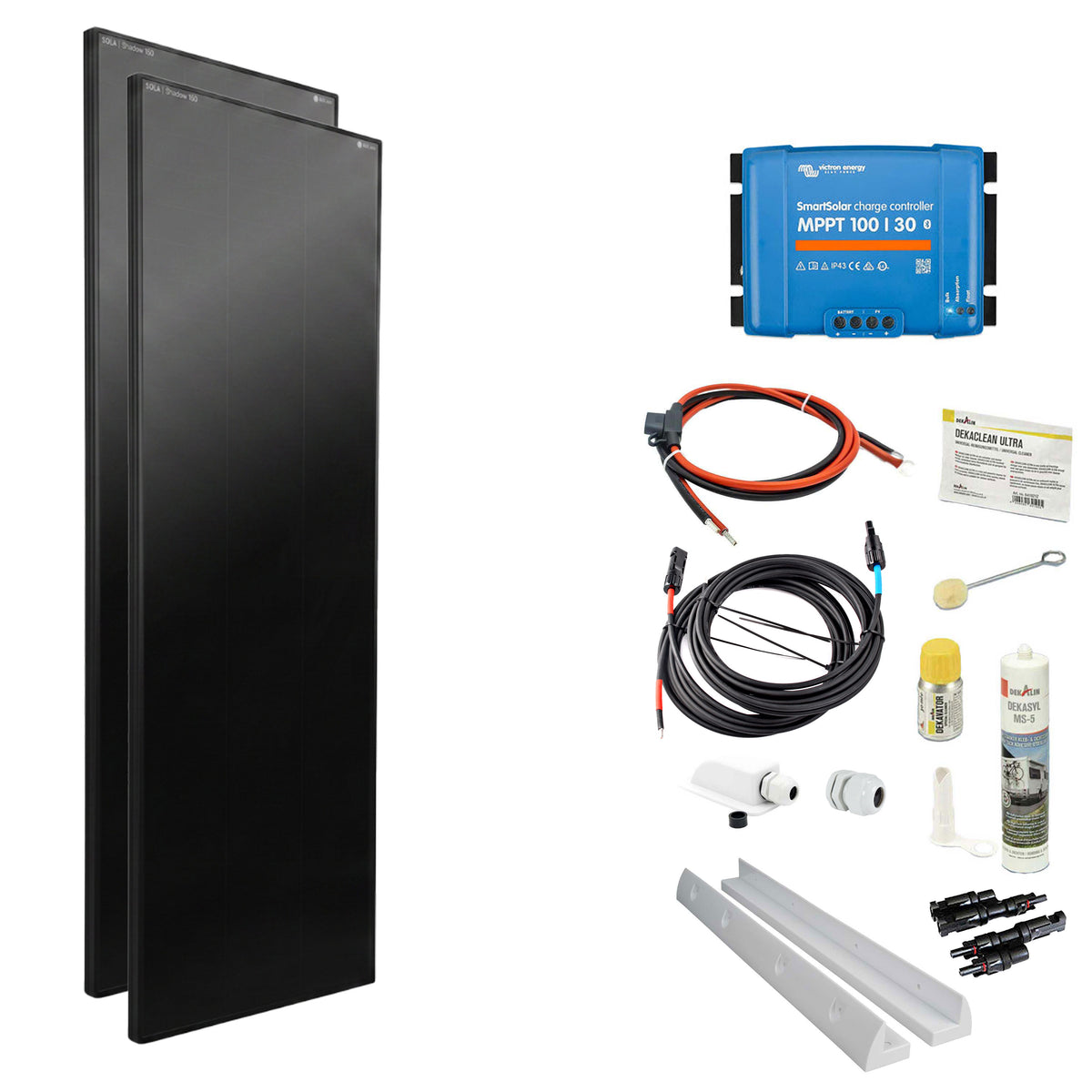

Set Contents

  • 1 × Victron SmartSolar MPPT 100/30 (integrated Bluetooth)
  • 2 × WATTSTUNDE® SOLA Frame Shadow 150 (300 W total)
  • 1 × WATTSTUNDE® MVK 6.7 Connection Cable solar module → charge controller
  • 1 × WATTSTUNDE® Fuse Cable (with 30 A fuse)
  • 2 × WATTSTUNDE® MOUNT Solar Module Mount 53 (white)
  • 1 × Dekalin Dekasyl MS-5 (white, 290 ml)
  • 1 × Dekalin Adhesive Set (white)
  • 1 × WATTSTUNDE® Roof Entry DX1/W ASA (white)
  • 1 × WATTSTUNDE® Cable Gland Twin solar cable M20×1.5 (white)
  • 1 × WATTSTUNDE® MC4.2 Connector Set (Y-connector for parallel connection)

Victron SmartSolar MPPT 100/30: fast MPPT, Bluetooth directly integrated

The Victron SmartSolar MPPT 100/30 operates with ultra-fast MPPT tracking and helps to charge the solar yield efficiently into the battery – especially with changing irradiance. Via Bluetooth, you can connect the controller directly to the VictronConnect App, view live data, and adjust settings without an additional dongle. The BatteryLife algorithm supports intelligent battery management and can help improve the operating life of the battery in everyday use.

Wiring in 6 mm²: for high currents and long cable runs

For a clean connection from the roof to the controller, the set is equipped with the WATTSTUNDE® MVK 6.7 Connection Cable (2 × 7 m, 6 mm²). On the module side, MC4-compatible connectors are mounted, while crimp terminals are used on the controller side. The cable is UV- and ozone-resistant, weather-resistant, halogen-free, and made for outdoor use.

Battery protection: 30 A fuse cable included

For the connection from the charge controller to the battery, a WATTSTUNDE® Fuse Cable is included with a replaceable 30 A blade fuse. Ring cable lugs (M8) are used on the battery side, while crimp terminals are prepared on the controller side. This ensures a cleanly protected connection that is ready to install.

Mounting & roof entry in white: coordinated down to the last detail

For roof mounting, 2 × WATTSTUNDE® MOUNT Solar Module Mount 53 in white are included. For a neat, sealed cable entry, the WATTSTUNDE® Roof Entry DX1/W ASA (white) and the WATTSTUNDE® Cable Gland for Twin Solar Cable M20×1.5 (white) are also included. This keeps the cable routing neat, protected, and weatherproof.

Bonding & sealing: Dekasyl MS-5 plus Dekalin Adhesive Set

For bonding and sealing, Dekalin Dekasyl MS-5 (white, 290 ml) is included. Additionally, a Dekalin Adhesive Set (white) is also included in the set so that preparation and processing can be carried out cleanly.

WATTSTUNDE® MC4.2 Connector Set: easily connect two modules in parallel

So that both solar modules work together cleanly, a WATTSTUNDE® MC4.2 Connector Set is included (Y-connector for parallel connection). This makes installation easier, reduces unnecessary cable lengths, and ensures a neat, robust plug connection.

Your benefits at a glance

  • 300 W total power from 2 modules – more yield for real self-sufficiency
  • Heavy-duty wiring: 6 mm² connection cable (2 × 7 m) for low losses
  • Cleanly protected: battery cable with 30 A fuse (replaceable)
  • Mounting & roof entry in white: matching mounts, roof entry, and cable gland

If you are looking for a powerful solar setup for on the go that can be installed without much additional effort, the WATTSTUNDE® SOLA Frame Shadow 300 W Complete Set in White is a very suitable choice.





Technical Data SOLA Frame Shadow 150
Rated power 150 W
Max. daily yield (summer) 600 Wh/d
Voltage (Vmp) 30.60 V
Current (Imp) 4.93 A
Open-circuit voltage (Voc) 35.70 V
Short-circuit current (Isc) 5.17 A
Cell efficiency ≤ 26 %
Cell material N-Type Back Contact
Bypass diodes 2
Weight 7.7 kg
Dimensions 1425 x 510 x 30 mm



Technical Data SmartSolar MPPT 100 / 30
Battery voltage 12 V / 24 V
Rated charging current 30 A
Rated PV power 12 V 440 W
Rated PV power 24 V 880 W
Max. PV open-circuit voltage 100 V
Max. PV short-circuit current 35 A
Efficiency 98 %
Constant charging voltage 14.4 V / 28.8 V
Float charging voltage 13.8 V / 27.6 V
Operating temperature - 30 °C - + 60 °C
Weight 1.3 kg
Dimensions 130 x 186 x 70 mm
