WATTSTUNDE® SOLA Frame Shadow 300 W Solar Module Complete Set in Black with Charge Controller

  • Power: 2 x 150 watts
  • N-type back-contact cells with anti-shading architecture
  • Up to 80% more power in partial shade
  • Weight: 7.7 kg
  • with Victron SmartSolar 100/30 MPPT Bluetooth charge controller
  • 1.5 m battery connection cable with 30 A fuse

Direkt zu den Produktinformationen ↓
Modulserie
Farbe der Halterung
Leistung:
Sale price1.096,79 €
Neues Produkt

Tax included. Shipping calculated at checkout

SKU: WS22-SFS-300200

In stock
Versandbereit in: 1 - 3 Werktagen

Product description

WATTSTUNDE® SOLA Frame Shadow 300 W Solar Module Complete Set (Black) with Charge Controller

The complete set in black is a powerful, ready-to-install solar solution for vehicle roofs – ideal if you want more energy available on the road and prefer a subtle, uniform look. It includes two Shadow modules, a suitable Victron MPPT charge controller, as well as black cabling, fuses, and roof accessories. Everything matches: from mounting on the roof to connecting to the onboard battery.

The 300 W is generated by 2 × SOLA Frame Shadow 150. This gives you a strong foundation for greater independence in everyday life – e.g., for a cooler, lights, chargers, or regular appliances. Since partial shading and changing light on the roof are normal, the Shadow series is designed specifically for these practical conditions.

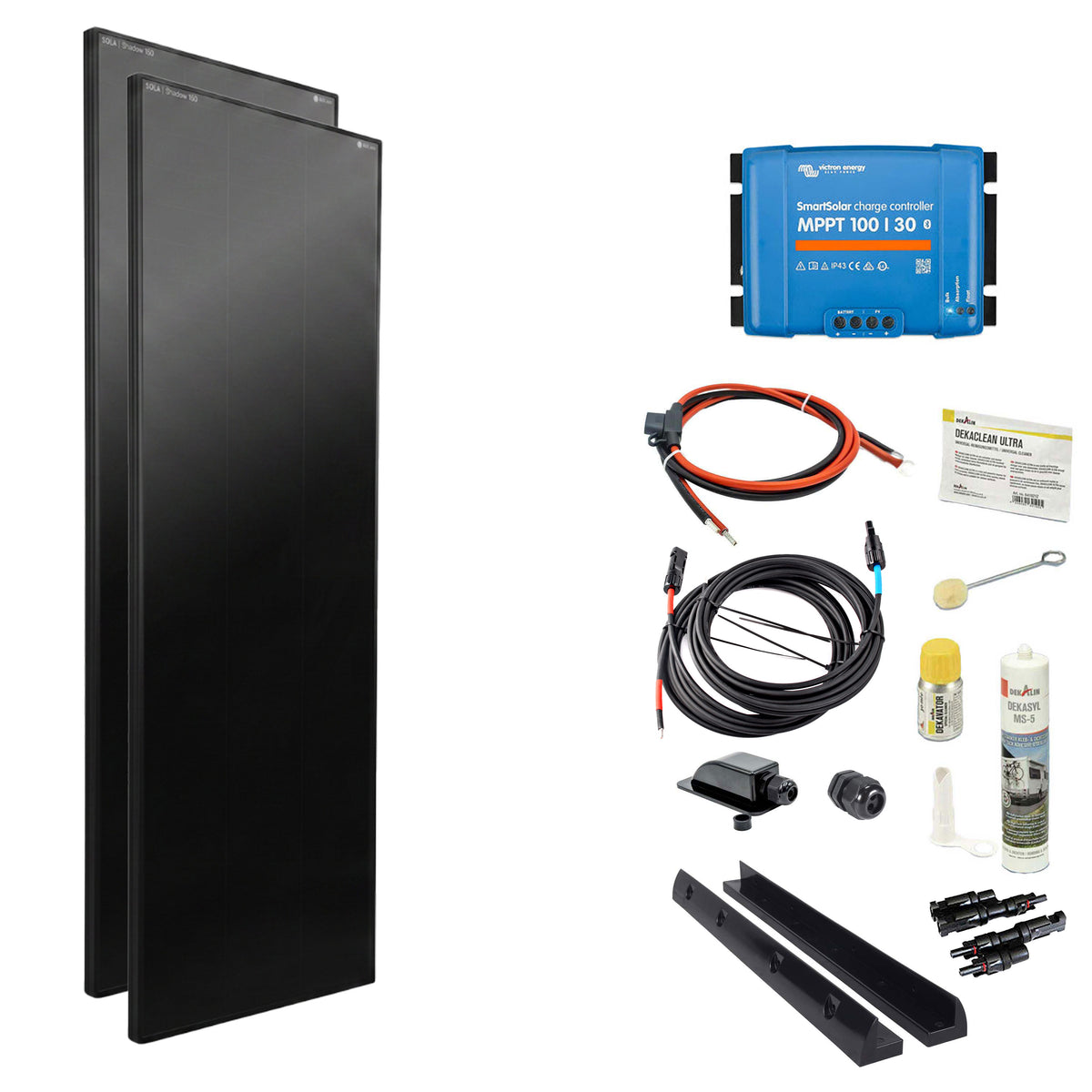

Set Contents

  • 1 × Victron SmartSolar MPPT 100/30 (integrated Bluetooth)
  • 2 × WATTSTUNDE® SOLA Frame Shadow 150 (300 W total)
  • 1 × WATTSTUNDE® MVK 6.7 Connection Cable Solar Module → Charge Controller
  • 1 × WATTSTUNDE® Fuse Cable (with 30 A fuse)
  • 2 × WATTSTUNDE® MOUNT Solar Module Mount 53 (black)
  • 1 × Dekalin Dekasyl MS-5 (black, 290 ml)
  • 1 × Dekalin Adhesive Set (black)
  • 1 × WATTSTUNDE® Roof Entry DX1/W ASA (black)
  • 1 × WATTSTUNDE® Cable Gland Twin Solar Cable M20×1.5 (black)
  • 1 × WATTSTUNDE® MC4.2 Connector Set (Y-connector for parallel connection)

Victron SmartSolar MPPT 100/30: ultra-fast tracking, Bluetooth built directly in

The Victron SmartSolar MPPT 100/30 operates with ultra-fast MPPT tracking and efficiently transfers the solar yield to the battery – especially under changing irradiance. Via Bluetooth, you can connect the controller directly to the VictronConnect App, retrieve live data, and adjust settings without an additional dongle. The BatteryLife algorithm supports intelligent battery management in everyday use.

6 mm² cabling and 30 A fuse: suitable for higher currents

From the roof to the controller, you use the WATTSTUNDE® MVK 6.7 Connection Cable (2 × 7 m, 6 mm²) – with MC4-compatible connectors on the module side and crimp terminals on the controller side. The WATTSTUNDE® Fuse Cable is included for the battery connection (1.5 m, 2 × 6 mm², red/black) with a replaceable 30 A blade fuse as well as M8 ring cable lugs/crimp terminals.

Black roof components: seamless mounting, entry, and cable routing

To keep the setup visually clean, the visible components are black: 2 × WATTSTUNDE® MOUNT Solar Module Mount 53 (black) for stable module mounting, the WATTSTUNDE® Roof Entry DX1/W ASA (black) for cable entry, and the WATTSTUNDE® Cable Gland for Twin Solar Cable M20×1.5 (black) for a tight, neat entry.

Bonding & Sealing: Dekasyl MS-5 plus Dekalin Adhesive Set

For bonding and sealing, Dekalin Dekasyl MS-5 (black, 290 ml) is included. A Dekalin Adhesive Set (black) is also included in the set so that preparation and processing can be carried out neatly.

WATTSTUNDE® MC4.2 Connector Set: simply connect two modules in parallel

To ensure that both solar modules work together neatly, a WATTSTUNDE® MC4.2 Connector Set is included (Y-connector for parallel connection). This saves unnecessary cable lengths and ensures a neat installation.

Your benefits at a glance

  • 300 W total power from 2 modules – more yield for real independence
  • Heavy-duty cabling: 6 mm² connection cable (2 × 7 m) for low losses
  • Neatly fused: battery cable with 30 A fuse (replaceable)
  • MC4.2 Y-connector for easy parallel connection of the two modules
  • Black components for a subtle, uniform roof look

If you are looking for a solar setup for on the road that is powerful enough and remains visually subtle on the roof, the WATTSTUNDE® SOLA Frame Shadow 300 W Complete Set in Black is a very suitable choice.





Technical Data SOLA Frame Shadow 150
Rated power 150 W
Max. daily yield (summer) 600 Wh/d
Voltage (Umpp) 30.60 V
Current (Impp) 4.93 A
Open-circuit voltage (Voc) 35.70 V
Short-circuit current (Isc) 5.17 A
Cell efficiency ≤ 26 %
Cell material N-Type Back Contact
Bypass diodes 2
Weight 7.7 kg
Dimensions 1425 x 510 x 30 mm



Technical Data SmartSolar MPPT 100 / 30
Battery voltage 12 V / 24 V
Rated charging current 30 A
Rated PV power 12 V 440 W
Rated PV power 24 V 880 W
Max. PV open-circuit voltage 100 V
Max. PV short-circuit current 35 A
Efficiency 98 %
Constant charging voltage 14.4 V / 28.8 V
Float charging voltage 13.8 V / 27.6 V
Operating temperature - 30 °C - + 60 °C
Weight 1.3 kg
Dimensions 130 x 186 x 70 mm
